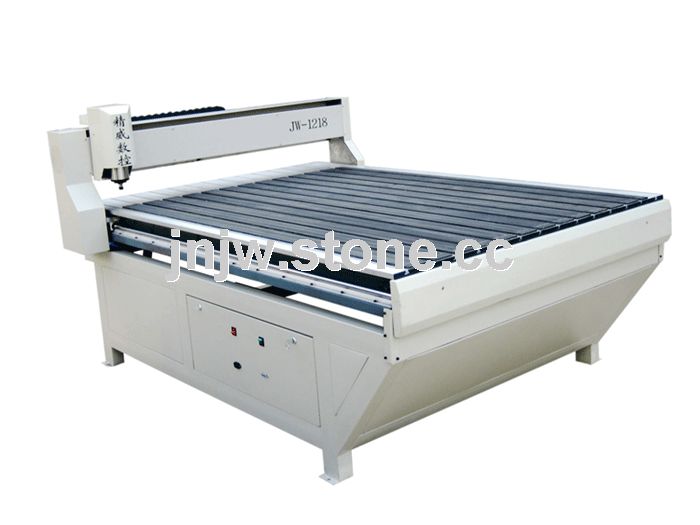

engraving machine|JW-1218

• Place of Origin:

   China

• Type:

  Polishing and Surface Finishing Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1317339

• Place of Origin:

  China
• Detailed Product Description
  This machine adapts cast-iron body and line rotundity guides, increasing the rigidity of the machine. X, Y, Z axis are imported from overseas. Running characteristic is excellent and precision is high. This machine can engrave exact art and craft,  accept  G code digital processing system and other softwares. The main spindle adopts 2200W main spindle motor, is quiet, smooth, small, clean,easily controlled and long life. The electronic parts are designed excellently.

  Features:
  1.The configuration is steel, the running is smooth.
  2.To use the 32 digits DSP controlling machine, the precision is 0.05mm.
  3.High efficiency,high precision.
  4.With the standard diameter tongs, you can use any standard engraving cutter.
  5.Accepts G code digital processing instruction, and Artcam art embossing software.

  Parameters:
  Model:JW-1218
  Size of working table : 1410mm*2130mm
  X, Y, Z travel : 1200mm * 1500mm * 80mm
  Maximum running speed : 22,000mm/min
  Maximum engraving speed : 5,000~7,000mm/min
  Precision : 0.05mm
  Repetition location precision : 0.02mm
  Acceptable media height : 80mm
  Power consumption : 0.8kW
  Driving way : Mini-step drive
  Handle diameter : 6mm, 4mm, 3.175mm
  Running speed of the main axes : 0--24,000 turn/s
  Interface : PCI /DSP hand handle
  Engraving order(3D engraving order ) : G-code. u00*.mmg*.plt
  Electronic pressure : AC220V, 50HZ(380V,50HZ, can be chosen)


  All parameters above subject to change without prior notice
