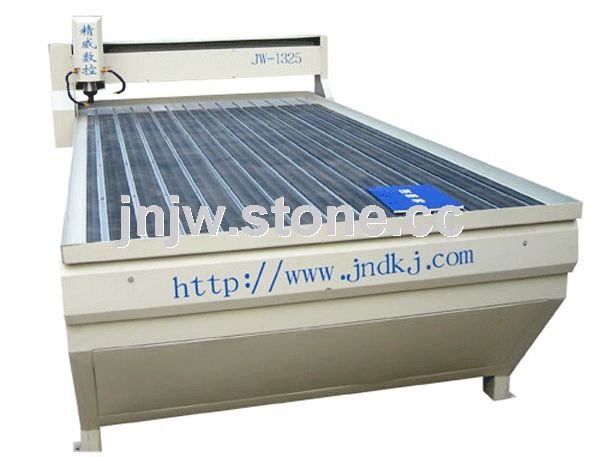

stone-engraving machine|JW-1325S

• Place of Origin:

   China

• Type:

  Quarrying and Earthmoving Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1317341

• Place of Origin:

  China
• Our company is the stone-engraving machine production base with the largest volume of exports. In base of Shandong University we are devoted to research and produce CNC, and has exploited stone-engraving machine and stone-carving machine. JINGWEI stone-engraving machine can process relief, fresco, engrave character and pattern, using marble, granite, tombstone, milestone, ceramic tile etc..

  Application:
  The CNC stepper is applicable to processing and making stone-relief, advertisement logo, 3D mould of lamp and case, founding mould, wave panels, aluminum plate cutting and large architectural mould.
  Apply to metal, plastics, leather, crystal, synthetic glass, bamboo, wood, many kinds of stone just as marble, granite and bluestone etc..
  Widely applied in billboards, artwork industry, name plate etc.


  Specification:

  Functional Index: Standard Value

  Working Area: 2850*1410mm.

  Travel of Engraving: 2470*1250*80mm.

  Maximum Engraving Speed: 10000mm/min.

  converter motor3000W  (4500W can be chosen).

  Rotation Speed of Spindle: 0~24000rpm.

  Format of Instructions: G code.U00*.mmg*.plt.

  Cutter: 3.175mm/4.00mm/6.00mm/12.00mm

  Power Supply: AC220/50HZ.

  Electric Power: 1800W

  Driving System: Stepper

  Weight: 1000KG
